Double-Sided Tape · Non-Woven
Double Sided Non-Woven Tape ZDN8103

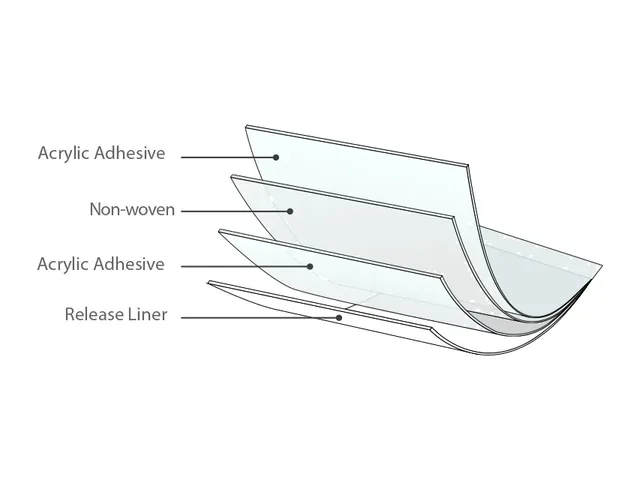

ZDN8103 is a double-sided adhesive tape which are specially design for bonding of paperboard, foam, felt and nameplate application. Double-sided adhesive tape which is impregnated with a tackified pressure-sensitive adhesive on the flexible non-woven, laminated on dimensional stable PEK liner.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Backing | Non-woven | |
| Color | Translucent | |
| Adhesive | Acrylic | |
| Tape Thickness (µm) | 100 | |
| 180° Peel Adhesion (N/25mm) | ≥ 13.00 | 30mins dwell; Steel · Test method: ASTM D3330 |
| Holding Power (Hr) | > 10 | 1kg, 25mmx25mm · Test method: PSTC-7 |
| Temperature Resistance (°C) | 80 |
- Backing
- Non-woven
- Color
- Translucent
- Adhesive
- Acrylic
- Tape Thickness (µm)
- 100
- 180° Peel Adhesion (N/25mm)
- ≥ 13.00
- 30mins dwell; Steel · Test method: ASTM D3330
- Holding Power (Hr)
- > 10
- 1kg, 25mmx25mm · Test method: PSTC-7
- Temperature Resistance (°C)
- 80
Features
- Very good adhesion level on various kinds of plastic materials, foams and metal surfaces
- Very good repulsion resistance and prevents lifting of curvature portion
- Very good adhesion on paper board
- Excellent temperature & heat resistance
- Dimensional stable liner provides excellent workability for full or half cut, during die cut process
Product applications
- Paper box closure
- Mounting of plastic and foam parts for E&E and automotive industries
- Lamination of Polyurethane foams, Polyethylene foams, felts, rubber, etc
- Lamination of nameplates for Electrical & Electronic Appliances
