Double-Sided Tape · Tissue

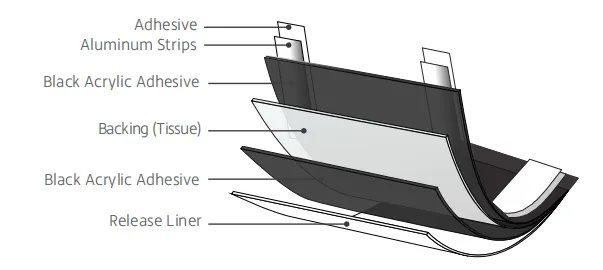

Double Sided Tape with Aluminium Strips ZDD8100BS
ZDD8100BS is a black double sided tape with aluminium strips, coated with black acrylic adhesive and protected with dimensional stable PE coated kraft paper liner. It is specially design for splicing application during diaper/sanitary production process. Its high initial tack provides immediate secure bonding on non-woven and PE film. The black colour and aluminium foil provide excellent dual detection during production process in ensuring splice area to be segregated from end product.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Adhesive | Acrylic | |
| Tape Colour | Black | |
| Tape Thickness (µm) | 100 | |
| Peel Adhesion to Steel (N/25mm) | 11 | |
| Holding Power (min) | ≥ 120 | 23°C |
| Initial Tack (mm) | ≤ 120 | Rolling Ball |
| Backing | Tissue |
- Adhesive
- Acrylic
- Tape Colour
- Black
- Tape Thickness (µm)
- 100
- Peel Adhesion to Steel (N/25mm)
- 11
- Holding Power (min)
- ≥ 120
- 23°C
- Initial Tack (mm)
- ≤ 120
- Rolling Ball
- Backing
- Tissue
Features
- High initial tack and peel adhesion provide secure bonding during splicing
- Black colour provides excellent colour detection
- Aluminium strips provide double detection for line that equip with metal detector
- PE kraft paper liner provide stable release properties and protection to the adhesive
Product applications
- Suitable for splicing of non-woven and PE film during production of diaper/sanitary
