Transfer Tape
Transfer Tape ZT8060

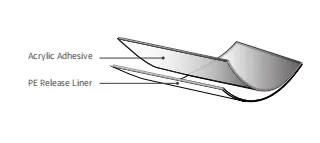

ZT8060 is a transfer tape (non-carrier) which consist of high-performance acrylic adhesive coated on dimensional stable release liner.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Backing | N/A | |
| Color | Clear | |
| Adhesive Type | Acrylic | |
| Adhesive Thickness (µm) | 60 | Test method: GB/T7125-2014 |
| Release Liner Type | Brown Kraft Paper Liner | |
| 180° Peel Adhesion to SUS (N/25mm) | ≥ 13 | 20mins dwell · Test method: GB/T2792-2014 |
| Static Shear Force (mins) | 10000 | 1000g, 25mm x 25mm, RT · Test method: GB/T4851-2014 |
- Backing
- N/A
- Color
- Clear
- Adhesive Type
- Acrylic
- Adhesive Thickness (µm)
- 60
- Test method: GB/T7125-2014
- Release Liner Type
- Brown Kraft Paper Liner
- 180° Peel Adhesion to SUS (N/25mm)
- ≥ 13
- 20mins dwell · Test method: GB/T2792-2014
- Static Shear Force (mins)
- 10000
- 1000g, 25mm x 25mm, RT · Test method: GB/T4851-2014
Features
- High adhesion, suitable for metal, glass and various plastic and painted surfaces
- High resistance to static stress and dynamic stress, and can resist certain vibration and impact
- Excellent aging resistance and temperature resistance
- Good die cutting performance
Product applications
- It is used for the bonding of panels, electrical component parts, and shock-proof foam
- Suitable for bonding on metal plates, plastic plates and carton-like materials
- Bonding on metal nameplate
- Bonding on membrane switch
