Transfer Tape
Transfer Tape ZT8063

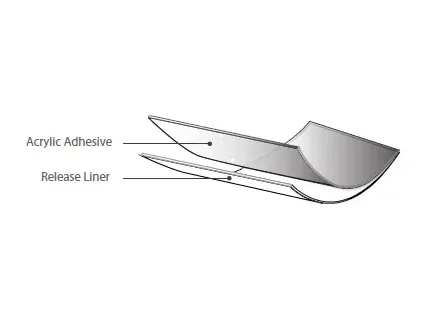

ZT8063 is a transfer tape (non-carrier) which consist of high-performance acrylic adhesive coated on dimensional stable release liner.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Backing | N/A | |
| Color | Clear | |
| Adhesive Type | Acrylic | |
| Adhesive Thickness (µm) | 60 | |
| Release Liner Type | PEK Liner | |
| 180° Peel Adhesion to SUS (N/25mm) | ≥ 13 | 30mins dwell |
| Static Shear Force (Hrs) | ≥ 24 | 1000g, 25mm x 25mm, RT |
| Temperature Resistance (°C) | 120 |
- Backing
- N/A
- Color
- Clear
- Adhesive Type
- Acrylic
- Adhesive Thickness (µm)
- 60
- Release Liner Type
- PEK Liner
- 180° Peel Adhesion to SUS (N/25mm)
- ≥ 13
- 30mins dwell
- Static Shear Force (Hrs)
- ≥ 24
- 1000g, 25mm x 25mm, RT
- Temperature Resistance (°C)
- 120
Features
- High adhesion to metal, glass and various plastic and painted surfaces
- High resistance to static stress and dynamic stress
- Excellent aging resistance and temperature resistance
- Good die cutting performance
Product applications
- It is used for the bonding of panels, electrical component parts, and foam
- Suitable for bonding on metal plates, plastic plates and card board
- Nameplate fixing, logo plate and foam lamination
- Membrane switch fixing
