Silicone Foam · Medium

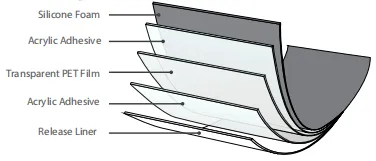

Medium Hardness Silicone Foam with Adhesive ZSM400A
ZSM400A is a silicone foam in the medium hardness. It combines the light weight characteristics of a foam with the sealing properties of a sponge material. Applications include gaskets and cushion pads. Easily die cut, it is available in several standard thicknesses.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Colour | Grey, Black | |
| Thickness (mm) | 0.8 ~ 12.7 | |
| Density (kg/m³) | 400 | Test method: ASTM D1056 |
| Tensile Strength, min (kPa) | 350 | Test method: ASTM D412 |
| Elongation, min (%) | 80 | Test method: ASTM D412 |
| Compression Force, 25% compression (kPa) | 80 | Test method: ASTM D1056 |
| Compression Set | < 1 at 70°C; < 5 at 100°C | max % · Test method: ASTM D1056 Test D |
| Flammability | V-0, HF-1 | Test method: UL94 |
| Recommended Use (°C) | -55 ~ 200 | |
| Adhesive tape: Tape Thickness (µm) | 100 | |
| Adhesive tape: Backing | 12 µm PET | |
| Adhesive tape: 180° Peel Adhesion to Steel, 2 mil PET (N/100mm) | 110 (15 min RT); 120 (72 h RT) | Test method: ASTM D3330 |
| Adhesive tape: 180° Peel Adhesion to PET, 2 mil PET, 15 min RT (N/100mm) | 97 | Test method: ASTM D3330 |
| Adhesive tape: 180° Peel Adhesion to other surfaces, 2 mil PET, 15 min RT (N/100mm) | ABS 90; Polycarbonate 107 | Test method: ASTM D3330 |
| Adhesive tape: Shear Strength, 25 mm × 25 mm / 1000 g at 22°C (min) | 10000 | Test method: ASTM D3654 |
| Adhesive tape: Solvent Resistance | Medium-Low | |
| Adhesive tape: UV Resistance | Medium | |
| Adhesive tape: Temperature Resistance (°C) | 80 long term; 200 short term |
- Colour
- Grey, Black
- Thickness (mm)
- 0.8 ~ 12.7
- Density (kg/m³)
- 400
- Test method: ASTM D1056
- Tensile Strength, min (kPa)
- 350
- Test method: ASTM D412
- Elongation, min (%)
- 80
- Test method: ASTM D412
- Compression Force, 25% compression (kPa)
- 80
- Test method: ASTM D1056
- Compression Set
- < 1 at 70°C; < 5 at 100°C
- max % · Test method: ASTM D1056 Test D
- Flammability
- V-0, HF-1
- Test method: UL94
- Recommended Use (°C)
- -55 ~ 200
- Adhesive tape: Tape Thickness (µm)
- 100
- Adhesive tape: Backing
- 12 µm PET
- Adhesive tape: 180° Peel Adhesion to Steel, 2 mil PET (N/100mm)
- 110 (15 min RT); 120 (72 h RT)
- Test method: ASTM D3330
- Adhesive tape: 180° Peel Adhesion to PET, 2 mil PET, 15 min RT (N/100mm)
- 97
- Test method: ASTM D3330
- Adhesive tape: 180° Peel Adhesion to other surfaces, 2 mil PET, 15 min RT (N/100mm)
- ABS 90; Polycarbonate 107
- Test method: ASTM D3330
- Adhesive tape: Shear Strength, 25 mm × 25 mm / 1000 g at 22°C (min)
- 10000
- Test method: ASTM D3654
- Adhesive tape: Solvent Resistance
- Medium-Low
- Adhesive tape: UV Resistance
- Medium
- Adhesive tape: Temperature Resistance (°C)
- 80 long term; 200 short term
Features
- Good spring force and low stress relaxation can reduce cost for gasket failure
- Tighten cell structure and special formulation provides good sealing performance to resist particles and rains
- Resistance to UV, ozone, extreme temperatures and flame enables the consistent performance
Product applications
- Suitable to be used for vibration isolation for components and vehicles
- Environmental sealing and protect enclosures to against dust, moisture, air and liquid
- As cushion pad and gasket
