Single-Sided Tape · PET
Single Sided PET Tape ZSP8070B

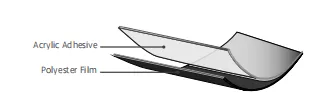

ZSP8070B is a single-sided tape that is consists of 25μm black polyester film and tackified acrylic adhesive It has excellent heat resistance performance which others very good adhesion and electrical insulation properties.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Backing | Polyester Film | |
| Color | Black | |
| Adhesive | Acrylic | |
| Tape Thickness (µm) | 70 | |
| 180° Peel Adhesion to Steel (N/25mm) | 4.75 | Test method: ASTM D3330 |
| Tensile Strength (N/cm) | > 90 | Test method: ASTM D1000 |
| Elongation (%) | > 80 | Test method: ASTM D1000 |
| Volume Resistivity (Ω·cm) | 10¹⁴ | |
| Dielectric Breakdown Voltage (kV) | 5 |
- Backing
- Polyester Film
- Color
- Black
- Adhesive
- Acrylic
- Tape Thickness (µm)
- 70
- 180° Peel Adhesion to Steel (N/25mm)
- 4.75
- Test method: ASTM D3330
- Tensile Strength (N/cm)
- > 90
- Test method: ASTM D1000
- Elongation (%)
- > 80
- Test method: ASTM D1000
- Volume Resistivity (Ω·cm)
- 10¹⁴
- Dielectric Breakdown Voltage (kV)
- 5
Features
- Excellent adhesion and electrical insulation properties
- Good electrical isolation properties such as volume resistivity
- Good dielectric breakdown voltage
Product applications
- Suitable for secondary electrical insulation or protective jackets for all electrical cables and wires
- Very suitable for electrical core or interlayer insulation or electrical isolation
- Also, for taping off and final bandage for coil winding and small motor with central coils
