Single-Sided Tape · Polyimide
Single Sided Polyimide Tape ZSI9081

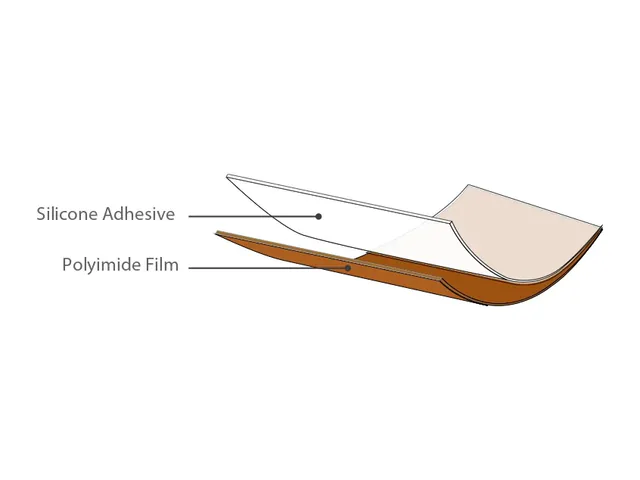

ZSI9081 is an anti-static, high temperature and chemical resistance single-sided pressure-sensitive tape with polyimide film as the base material and coated with silicone adhesive.
Product specifications
| Property | Value |
|---|---|
| Backing | Polyimide |
| Peel Adhesion (kg/25mm) | 5.5 ~ 6.0 |
| Adhesive | Silicone |
| Tape Colour | Brown |
| Substrate Thickness (mm) | 0.05 |
| Adhesive Thickness (mm) | 0.028 ~ 0.03 |
| Withstand Voltage (kV) | 6.50 |
| Anti-static Index | 10⁶ ~ 10⁸ |
- Backing
- Polyimide
- Peel Adhesion (kg/25mm)
- 5.5 ~ 6.0
- Adhesive
- Silicone
- Tape Colour
- Brown
- Substrate Thickness (mm)
- 0.05
- Adhesive Thickness (mm)
- 0.028 ~ 0.03
- Withstand Voltage (kV)
- 6.50
- Anti-static Index
- 10⁶ ~ 10⁸
Features
- High temperature resistance -60°C to 250°C
- Anti-static
- High chemical resistance
- Provides high peel adhesion on various surfaces
- Dimensionally stable
Product applications
- The premium grade polyimide tape can be used for chemical product on processes and wave soldering, e.g. during circuit board assembly
- Suitable for masking of 3D printing beds or electrical and thermal insulation, e.g. wire-or cable-wrapping
