Single-Sided Tape · PTFE Cloth
Single Sided PTFE Cloth Tape ZSPTC9160

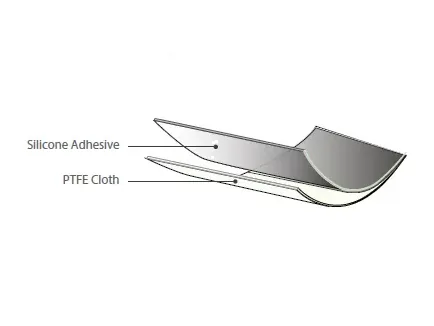

ZSPTC9160 is a fiberglass cloth base material impregnated with polytetrafluoroethylene (PTFE). Single surface treated and coated with a silicone adhesive exhibits excellent heat resistance and mechanical strength.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Backing | PTFE Cloth | |
| Adhesive | Silicone | |
| Tape Colour | Brown | |
| Tape Thickness (µm) | 160 | |
| 180° Peel Adhesion on SUS (g/25mm) | 1100 | Test method: ASTM D3330 |
| Tensile Strength (kg/25mm) | 45 | |
| Temperature Resistance (°C) | -70 ~ 260 |
- Backing
- PTFE Cloth
- Adhesive
- Silicone
- Tape Colour
- Brown
- Tape Thickness (µm)
- 160
- 180° Peel Adhesion on SUS (g/25mm)
- 1100
- Test method: ASTM D3330
- Tensile Strength (kg/25mm)
- 45
- Temperature Resistance (°C)
- -70 ~ 260
Features
- Excellent high-temperature resistance
- Good dimensional stability that the tape is exposed to extreme heat will not sustain irreversible warping
- Have a low friction coefficient
- PTFE cloth provide excellent properties for electrical insulation, heat, chemical and water resistance
- PTFE cloth provide anti-adhesive properties
Product applications
- Suitable to be used in large-scale solar panel lamination processes that are exposed to extreme heat
- Roller wrapping where anti-adhesive and high temperature resistance is required
- Bag sealing machine
