Single-Sided Tape · PTFE Film
Single Sided PTFE Film Tape ZSTF9100R

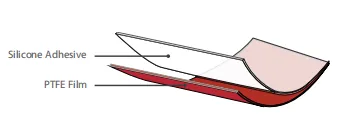

ZSTF9100R is a heat-resistant adhesive tape consisting of PTFE (polytetrafluoroethylene) special reinforced film and silicone adhesive layer. These products have a following various properties, high mechanical strength, desirable electrical insulation, chemical resistance, non-adhesive characteristics and excellent heat resistance.
Product specifications
| Property | Value |
|---|---|
| Backing | PTFE Film |
| Adhesive | Silicone |
| Tape Colour | Red |
| Tape Thickness (µm) | 100 |
| Peel Strength (gf/25mm) | 850 |
| Elongation at Break (%) | 150 |
| Tensile Strength (mpa/25mm) | 65 |
| Service Temperature (°C) | 200 |
| Dielectric Breakdown Voltage (kV) | 19 |
- Backing
- PTFE Film
- Adhesive
- Silicone
- Tape Colour
- Red
- Tape Thickness (µm)
- 100
- Peel Strength (gf/25mm)
- 850
- Elongation at Break (%)
- 150
- Tensile Strength (mpa/25mm)
- 65
- Service Temperature (°C)
- 200
- Dielectric Breakdown Voltage (kV)
- 19
Features
- The non-adhesive side exhibits excellent characteristics of PTFE such as electrical characteristics, resistance to weather, chemical, and water (water-shedding), and non-adhesiveness
- Excellent release properties due to PTFE surface and its low surface energy
- Enhanced mechanical stability and abrasion resistance
- Superior tensile strength
Product applications
- Suitable to be used for roll wrapping of polyethylene laminators
- Also suitable for endless belts of polyethylene laminators (time for changing tapes upon dimensional change of laminated products can be shortened by making a double-layered endless belt by bonding the adhesive sides together, or, depending on application)
- Can be laminated with metals, plastics and ceramics as general sliding materials
