Thermal Pad
Thermal Conductivity Gasket Z-SR1000-730B

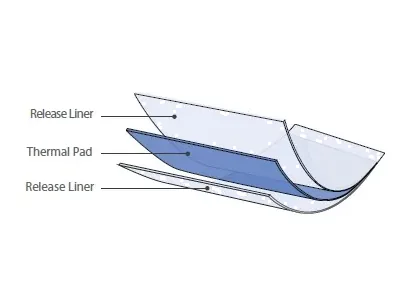

Z-SR1000-730B is thermal pad that can fill the gap between heat source and radiator, quickly transmit heat to radiator, and reduce the temperature of heat source. Due to components will collides and cracks when vibrates, the resilience of thermal pad can protect components, fitting heat source and radiator tightly and preventing deformation of components produced by strong impact or shell removes main device.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Colour | Dark Blue | |
| Thickness Range (mm) | 0.3 ~ 12.0 | Test method: ASTM D374 |
| Volume Resistivity (Ω·cm) | ≥ 1.1 × 10¹⁶ | Test method: ASTM D257 |
| Thermal Conductivity (W/m·K) | 3.0 | Test method: ASTM D5470 |
| Hardness Shore 00 | 30 ~ 50 | Test method: ASTM D2240 |
| Dielectric Breakdown Voltage (kV) | ≥ 4.0 | 1 mm thickness · Test method: ASTM D149 |
| Density (g/cm³) | 3.0 | Test method: ASTM D792 |
| Working Temperature (°C) | -40 ~ 200 | |
| Flame Retardant | V-0 | Test method: UL94 |
- Colour
- Dark Blue
- Thickness Range (mm)
- 0.3 ~ 12.0
- Test method: ASTM D374
- Volume Resistivity (Ω·cm)
- ≥ 1.1 × 10¹⁶
- Test method: ASTM D257
- Thermal Conductivity (W/m·K)
- 3.0
- Test method: ASTM D5470
- Hardness Shore 00
- 30 ~ 50
- Test method: ASTM D2240
- Dielectric Breakdown Voltage (kV)
- ≥ 4.0
- 1 mm thickness · Test method: ASTM D149
- Density (g/cm³)
- 3.0
- Test method: ASTM D792
- Working Temperature (°C)
- -40 ~ 200
- Flame Retardant
- V-0
- Test method: UL94
Features
- Excellent thermal conductivity: 3.0W /m.K
- High compressibility, soft and elastic, suitable for low pressure environment
- Excellent electrical insulation
- High temperature resistance and electrical insulation
- Flame retardant
Product applications
- Suitable for power supply equipment and vehicle battery
- Also for mobile or 5G Network communication equipment
- Suitable for automotive electronic equipment and consumer electronics
