Double-Sided Tape · Acrylic Foam
Double Sided Acrylic Foam Tape ZDA81101GY

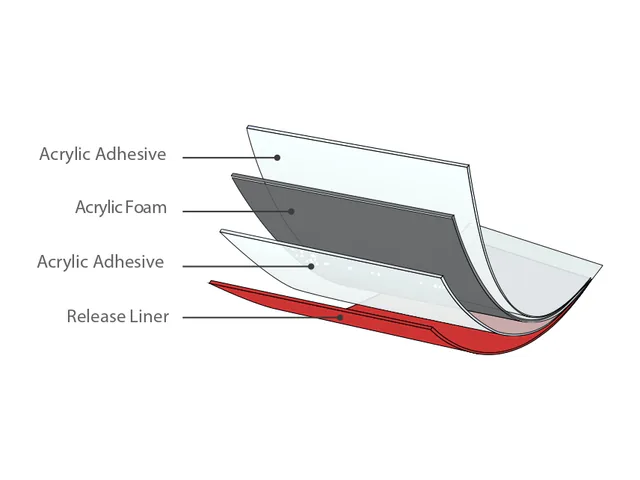

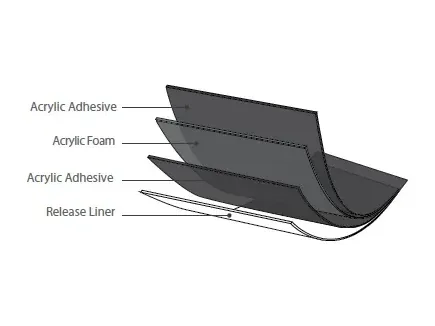

ZDA81101GY is a double sided tape consisting of grey colour closed-cell acrylic foam produced by a unique solvent-free manufacturing technology, which has special viscoelastic properties and can absorb and disperse stress to the greatest extent. The product is superior to high surface energy material, which has excellent initial adhesion and excellent ultimate adhesion.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Backing | Acrylic Foam | |
| Adhesive | Acrylic | |
| Tape Colour | Grey | |
| Tape Thickness (µm) | 1100 | |
| 90° Peel Adhesion to Steel, on release material surface (N/25mm) | 45 (20 min) / 70 (72 h) | Test method: ASTM D3330 |
| 90° Peel Adhesion to Steel, on non-release material surface (N/25mm) | 40 (20 min) / 70 (72 h) | Test method: ASTM D3330 |
| Static Shear Resistance (h/mm²) | ≥ 240 (25°C/1000 g) / ≥ 240 (90°C/500 g) | Test method: ASTM D3654 |
| Dynamic Shear Strength (kPa) | 450 (20 min) / 600 (72 h) | Test method: ASTM D1002 |
| Anti-UV | Excellent | |
| Water & Weather Resistance | Excellent |
- Backing
- Acrylic Foam
- Adhesive
- Acrylic
- Tape Colour
- Grey
- Tape Thickness (µm)
- 1100
- 90° Peel Adhesion to Steel, on release material surface (N/25mm)
- 45 (20 min) / 70 (72 h)
- Test method: ASTM D3330
- 90° Peel Adhesion to Steel, on non-release material surface (N/25mm)
- 40 (20 min) / 70 (72 h)
- Test method: ASTM D3330
- Static Shear Resistance (h/mm²)
- ≥ 240 (25°C/1000 g) / ≥ 240 (90°C/500 g)
- Test method: ASTM D3654
- Dynamic Shear Strength (kPa)
- 450 (20 min) / 600 (72 h)
- Test method: ASTM D1002
- Anti-UV
- Excellent
- Water & Weather Resistance
- Excellent
Features
- Excellent UV resistance and weather resistance
- The closed-cell foam structure has reliable sealing and waterproof performance, and the unique foam layer can relieve stress under high stress load
- Superior bonding strength and shear strength
- Excellent adhesion to automobile paint and many other materials
- Excellent temperature resistance and long term temperature resistance to 120°C
Product applications
- Suitable to be used in automotive industry for fixing of exterior parts such as signs, decorative strips, etc
- Excellent adhesion to various high surface energy substrates including a variety of metals, glass and various plastics
