Double-Sided Tape · Acrylic Foam
Double Sided Acrylic Foam Tape ZDA81503GY

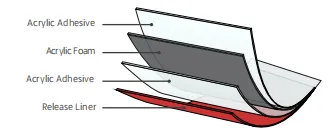

ZDA81503GY is a double sided tape consisting of grey colour closed-cell acrylic foam produced by a unique solvent-free manufacturing technology, which has special viscoelastic properties and can absorb and disperse stress to the greatest extent. The adhesive layer uses modified acrylic pressure-sensitive adhesive, which has excellent initial adhesion and ultimate adhesion, the tape is specially developed for the attachment of automotive exterior parts. This tape can provide excellent adhesion to traditional paints and advanced paints.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Backing | Acrylic Foam | |
| Adhesive | Acrylic | |
| Tape Colour | Grey | |
| Tape Thickness (µm) | 1500 | |
| 90° Peel Adhesion to Steel, on release material surface (N/25mm) | 55 (20 min) / 70 (72 h) | Test method: ASTM D3330 |
| 90° Peel Adhesion to Steel, on non-release material surface (N/25mm) | 55 (20 min) / 70 (72 h) | Test method: ASTM D3330 |
| Static Shear Resistance (h/mm²) | ≥ 240 (25°C/1000 g) / ≥ 240 (90°C/500 g) | Test method: ASTM D3654 |
| Dynamic Shear Strength (kPa) | 600 (20 min) / 650 (72 h) | Test method: ASTM D1002 |
| Anti-UV | Excellent | |
| Water & Weather Resistance | Excellent |
- Backing
- Acrylic Foam
- Adhesive
- Acrylic
- Tape Colour
- Grey
- Tape Thickness (µm)
- 1500
- 90° Peel Adhesion to Steel, on release material surface (N/25mm)
- 55 (20 min) / 70 (72 h)
- Test method: ASTM D3330
- 90° Peel Adhesion to Steel, on non-release material surface (N/25mm)
- 55 (20 min) / 70 (72 h)
- Test method: ASTM D3330
- Static Shear Resistance (h/mm²)
- ≥ 240 (25°C/1000 g) / ≥ 240 (90°C/500 g)
- Test method: ASTM D3654
- Dynamic Shear Strength (kPa)
- 600 (20 min) / 650 (72 h)
- Test method: ASTM D1002
- Anti-UV
- Excellent
- Water & Weather Resistance
- Excellent
Features
- Excellent UV resistance and weather resistance
- The closed-cell foam structure has reliable sealing and waterproof performance, and the unique foam layer can relieve stress under high stress load
- Superior bonding strength and shear strength
- Excellent adhesion to automobile paint and many other materials
- Excellent follow-up to the expansion and contraction of external parts caused by temperature changes
Product applications
- Suitable to be used for adhesion of car body side anti-scratch strips, bumper molding, roof molding, mudguards, cladding panels, door sun visors, etc
