Double-Sided Tape · PET
High Performance Double Sided PET Tape ZDP8054HP

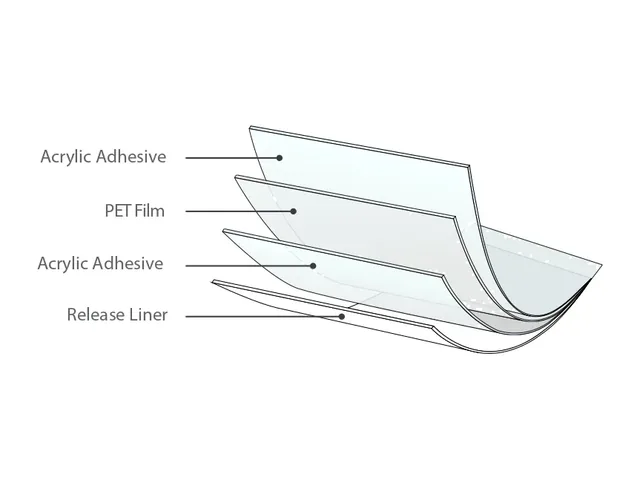

ZDP8054HP is a transparent double sided tape consisting of ultra-thin polyester film coated with a high-performance acrylic based pressure-sensitive adhesive.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Backing | PET | |
| Adhesive | Acrylic | |
| Tape Colour | Transparent | |
| Tape Thickness (µm) | 50 ± 10% | |
| 180° Peel Adhesion to Steel (N/25mm) | ≥ 11 | 30mins dwell · Test method: ASTM D3330 |
| Holding Power (min) | ≥ 1440 | 1kg/5.76cm2 · Test method: ASTM D3654 |
| Temperature Resistance (°C) | 80 |
- Backing
- PET
- Adhesive
- Acrylic
- Tape Colour
- Transparent
- Tape Thickness (µm)
- 50 ± 10%
- 180° Peel Adhesion to Steel (N/25mm)
- ≥ 11
- 30mins dwell · Test method: ASTM D3330
- Holding Power (min)
- ≥ 1440
- 1kg/5.76cm2 · Test method: ASTM D3654
- Temperature Resistance (°C)
- 80
Features
- Excellent adhesion and holding power
- Excellent die-cutting performance and temperature resistance
- Good bonding effect on different plastic films, hardware or painted plate
Product applications
- Suitable to be used for mounting module and metal frame
- Also used for mounting in mobile phones, digital components and decorative parts in furniture and metal sheets
