Double-Sided Tape · PET
Double Sided PET Tape ZDP8052HP

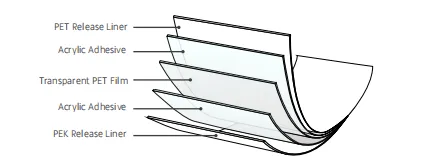

ZDP8052HP is a transparent double sided tape consisting of ultra-thin polyester film coated with a high performance acrylic based pressure-sensitive adhesive and a high quality release liner. The tape is specially designed for display market application, mobile phone system assembly applications, notebook component set-up and so forth.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Backing | Transparent PET film | |
| Adhesive | Acrylic | |
| Tape Colour | Transparent | |
| Tape Thickness (µm) | 55 ± 10% | |
| 180° Peel Adhesion to Steel (g/25mm) | > 1600 | 30mins dwell · Test method: ASTM D3330 |
| Holding Power (0.5kg/inch) | > 72 | 60°C; Hrs · Test method: JIS Z 0237 |
| Temperature Range (°C) | -40 ~ 120 |
- Backing
- Transparent PET film
- Adhesive
- Acrylic
- Tape Colour
- Transparent
- Tape Thickness (µm)
- 55 ± 10%
- 180° Peel Adhesion to Steel (g/25mm)
- > 1600
- 30mins dwell · Test method: ASTM D3330
- Holding Power (0.5kg/inch)
- > 72
- 60°C; Hrs · Test method: JIS Z 0237
- Temperature Range (°C)
- -40 ~ 120
Features
- Excellent adhesion and holding power
- Excellent die-cutting performance and temperature resistance
- Good bonding effect on different plastic films, hardware or painted plate
Product applications
- Suitable to be used for mounting module and metal frame
- Also used for mounting in mobile phones, digital components and decorative parts in furniture and metal sheets
