Single-Sided Tape · PET
Single Sided Polyester Tape ZSP8050B

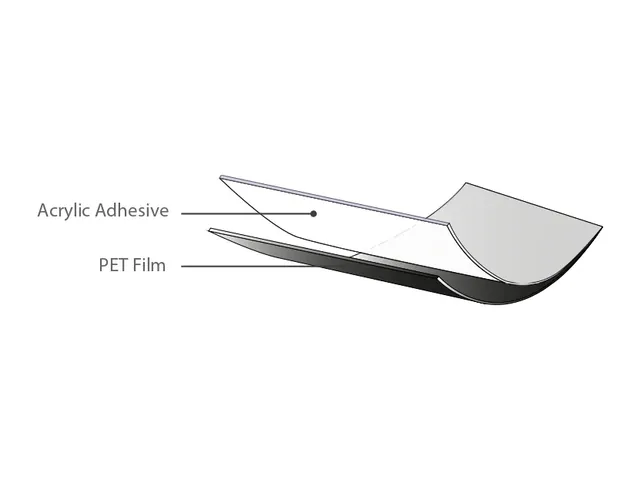

ZSP8050B is a black single sided polyester tape with acrylic adhesive.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Backing | Polyester Film | |
| Color | Black | |
| Adhesive | Acrylic | |
| Tape Thickness (µm) | 50 | Test method: ASTM D1000 |
| Peel Adhesion (kg/25mm) | > 0.6 | Test method: ASTM D3330 |
| Elongation (%) | ≥ 45 | Test method: ASTM D1000 |
| Tensile Strength (kg/25mm) | ≥ 4 | Test method: ASTM D1000 |
| Holding Power (Hr) | > 24 | Test method: PSTC-107 |
| Initial Tack (cm) | < 10 | Ball #14 · Test method: PSTC-6 |
- Backing
- Polyester Film
- Color
- Black
- Adhesive
- Acrylic
- Tape Thickness (µm)
- 50
- Test method: ASTM D1000
- Peel Adhesion (kg/25mm)
- > 0.6
- Test method: ASTM D3330
- Elongation (%)
- ≥ 45
- Test method: ASTM D1000
- Tensile Strength (kg/25mm)
- ≥ 4
- Test method: ASTM D1000
- Holding Power (Hr)
- > 24
- Test method: PSTC-107
- Initial Tack (cm)
- < 10
- Ball #14 · Test method: PSTC-6
Features
- Good adhesion and electrical insulation properties
- Good electrical isolation properties such as volume resistivity
- Good dielectric breakdown voltage
Product applications
- Suitable for secondary Electrical insulation or protective jackets for all electrical cables and wires
- Suitable for electrical core or interlayer insulation or electrical isolation
- Also use for taping off and final bandage for coil winding and small motor with central coils
