Single-Sided Tape · Polyimide
Single Sided Polyimide Tape ZSI8150

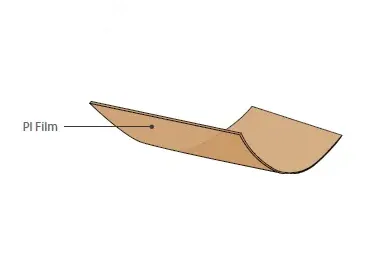

ZSI8150 is a high temperature resistant single-sided pressure-sensitive tape with polyimide film as the base material and coated with acrylic adhesive.
Product specifications
| Property | Value | Condition / test method |
|---|---|---|
| Backing | Polyimide | |
| Adhesive | Acrylic | |
| Tape Colour | Amber | |
| Tape Thickness (µm) | 150 | |
| Peel Adhesion on Steel (N/25mm) | > 4.6 | Test method: PSTC-101 |
| Elongation at Break (%) | > 50 | Test method: PSTC-31 |
| Tensile Strength (N/25mm) | > 110 | Test method: PSTC-31 |
| Temperature Resistance- Short Term (°C) | 200 | |
| Dielectric Breakdown Voltage (kV) | > 4.0 | Test method: PSTC-51 |
- Backing
- Polyimide
- Adhesive
- Acrylic
- Tape Colour
- Amber
- Tape Thickness (µm)
- 150
- Peel Adhesion on Steel (N/25mm)
- > 4.6
- Test method: PSTC-101
- Elongation at Break (%)
- > 50
- Test method: PSTC-31
- Tensile Strength (N/25mm)
- > 110
- Test method: PSTC-31
- Temperature Resistance- Short Term (°C)
- 200
- Dielectric Breakdown Voltage (kV)
- > 4.0
- Test method: PSTC-51
Features
- High temperature resistance up to 200°C
Product applications
- Suitable to be used for PCB board gold finger shielding protection
- Suitable also for high temperature masking
