Single-Sided Tape · PTFE Cloth
Single Sided PTFE Cloth Tape ZSPTC9251

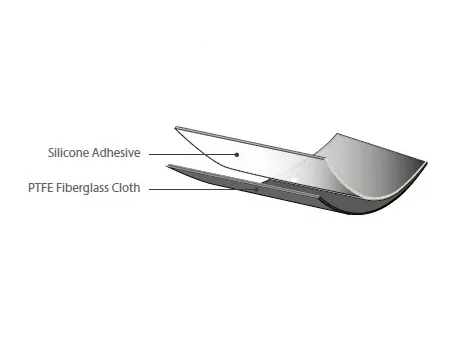

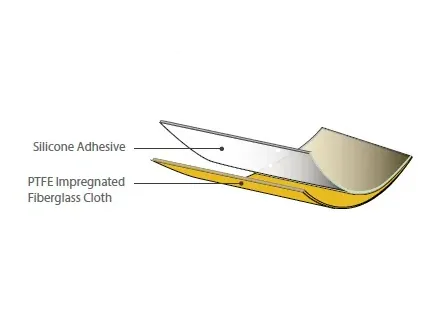

ZSPTC9251 is a woven fiberglass cloth base material impregnated with polytetrafluoroethylene (PTFE). Single surface treated and coated with a silicone adhesive exhibits excellent heat resistance and mechanical strength.
Product specifications
| Property | Value |
|---|---|
| Backing | PTFE Cloth |
| Adhesive | Silicone |
| Tape Thickness (µm) | 250 |
| Surface Resistance (Ω) | 10⁶ |
| Peel Adhesion (N/25mm) | 10 ~ 22 |
| Tensile Strength (N/cm) | 190 |
| Elongation (%) | 0.5 |
| Breakdown Voltage (kV) | 25 |
| Temperature Resistance (°C) | -70 ~ 260 |
- Backing
- PTFE Cloth
- Adhesive
- Silicone
- Tape Thickness (µm)
- 250
- Surface Resistance (Ω)
- 10⁶
- Peel Adhesion (N/25mm)
- 10 ~ 22
- Tensile Strength (N/cm)
- 190
- Elongation (%)
- 0.5
- Breakdown Voltage (kV)
- 25
- Temperature Resistance (°C)
- -70 ~ 260
Features
- Excellent high-temperature resistance and can continue working from -70 to 260 °C without decreasing in ability
- Good dimensional stability that the tape is exposed to extreme heat will not sustain irreversible warping
- Have a low friction coefficient that is suitable as an insulator
- Easy release surface as the material can clean almost any surface and resist most types of oil and EVA glue stains
- Great chemical resistance, can withstand corrosions from strong acids and alkali
Product applications
- Suitable to be used in large-scale solar panel lamination processes that are exposed to extreme heat
