Single-Sided Tape · PTFE Cloth
Single Sided PTFE Cloth Tape ZSPTC9252

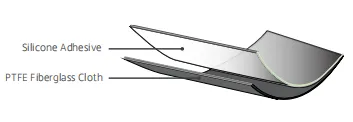

ZSPTC9252 is an anti-static PTFE coated fiberglass with carbon added for conductive and anti-static property. The high quality PTFE coated on the basic fiberglass that makes it into anti-static PTFE fabric characteristic combined with the easy release property.
Product specifications
| Property | Value |
|---|---|
| Backing | PTFE Cloth |
| Adhesive | Silicone |
| Tape Colour | Black |
| Tape Thickness (µm) | 250 |
| Surface Resistance (Ω/m²) | 10⁷ ~ 10⁵ |
| Tensile Strength (N/cm) | 460 (warp); 400 (fill) |
| Temperature Resistance (°C) | -73 ~ 260 |
- Backing
- PTFE Cloth
- Adhesive
- Silicone
- Tape Colour
- Black
- Tape Thickness (µm)
- 250
- Surface Resistance (Ω/m²)
- 10⁷ ~ 10⁵
- Tensile Strength (N/cm)
- 460 (warp); 400 (fill)
- Temperature Resistance (°C)
- -73 ~ 260
Features
- Excellent high-temperature resistance and can continue working from -73 to 260°C without decreasing in ability
- Good dimensional stability that the tape is exposed to extreme heat will not sustain irreversible warping
- Have a low friction coefficient that is suitable as an insulator
- Easy release surface as the material can clean almost any surface and resist most types of oil and EVA glue stains
- Great chemical resistance, can withstand corrosions from strong acids and alkali
Product applications
- Suitable to be used in large-scale solar panel lamination processes that are exposed to extreme heat
- Widely used in conveyor belts, release sheets, wire and cable production where static can be made
- Suitable also to be used in applications such as automotive, electronics like electrical insulation, LCD/FPC/PCB manufacturing
- Packaging like heat sealing, release sheet for heat press machines, Textile like seamless fusing belts for fusing machine, release sheet in shoes industry, textile lamination, etc
